Audit ledger and evidence

Read the audit ledger, verify its hash chain and signed checkpoints, detect tampering, export evidence bundles and stream records to a SIEM or WORM storage.

flowchart LR
  A[Governed call] --> B[Gateway decision]
  B --> C[(Audit ledger<br/>hash-chained JSONL)]
  C --> D[maqpna audit tail<br/>maqpna dev timeline]
  C --> E[maqpna audit verify<br/>chain + checkpoints]
  C --> F[maqpna audit export<br/>evidence bundle]
  C --> G[auditSinks<br/>SIEM]
  C --> H[audit.worm<br/>write-once storage]

Goal#

Read what your agents did, prove that the audit ledger has not been changed, hand an auditor a verifiable evidence bundle, and ship the ledger to your SIEM and to write-once storage (WORM).

The audit ledger is the append-only record of every decision, approval, revocation and result. Each audit record carries the SHA-256 hash of the previous one, so changing or removing a record breaks the chain. A checkpoint is a signed statement of the ledger head; with an Ed25519 checkpoint key that you hold, a third party can verify the ledger offline without trusting MAQPNA.

Prerequisites#

• The maqpna CLI.
• A local MAQPNA from your first governed agent (maqpna dev up), or an installation and an access token with the auditor or admin role.
• For signed checkpoints: an Ed25519 signing key that you hold (step 4).

Steps#

1. Make a few governed calls#

On a local MAQPNA, make one allowed and one denied call so the ledger has something to show:

maqpna dev up --stub-llm
maqpna dev run -- maqpna call --server echo --tool echo --arg text=hello
maqpna dev run -- maqpna call --server echo --tool delete_resource --arg id=db-1 --arg namespace=kube-system

The local ledger is the file .maqpna/audit.jsonl. In a cluster it is the gateway's auditPath (a volume, or the PostgreSQL table audit_chain with state.backend: postgres).

2. Read the ledger#

Each line is one audit record. This is a real record of a denied call from a local run:

{"seq":3,"time":"2026-10-03T03:47:22.578756Z","session":"dev-c4d65a9e","namespace":"dev","agent":"coder","user":"you@localhost","server":"echo","tool":"delete_resource","argsSha256":"72cfc439561889f817e4d59f78457a8f9c8e2f4e0d68e856f148f0500b6dd0c4","decision":"deny","rule":"baseline-guardrails/never-touch-system-namespaces","reason":"system namespaces are off-limits to agents","approver":"","latencyMs":0,"costUsd":0,"prevHash":"f0e3d5a5b1fb681de7…","hash":"7b7c2025…","schema":2}

To follow the ledger of a running gateway, use maqpna audit tail. It reads GET /v1/audit/records with the admin API:

eval "$(maqpna dev env)"          # local MAQPNA: gateway URL and admin token
maqpna audit tail --since 0

Output from a local run:

2026-10-03T03:47:22.425Z #1 dev/dev-10a2bb09 coder echo/echo allow baseline-guardrails default_action
2026-10-03T03:47:22.500Z #2 team-a/dev-d5c7b7ae reviewer echo/get_time allow baseline-guardrails default_action
2026-10-03T03:47:22.578Z #3 dev/dev-c4d65a9e coder echo/delete_resource deny baseline-guardrails/never-touch-system-namespaces system namespaces are off-limits to agents
2026-10-03T03:47:22.856Z #4 dev/dev-ae793f67 coder llm/stub/chat.completions allow - scope:models:stub; model:stub; usage:prompt=8,completion=44

Filter with --session, -n, --agent, --user, --decision or --trace (an OpenTelemetry trace ID), follow with -f, and print one JSON record per line with -f -o json. For one session's story, use the timeline (see sessions):

maqpna dev timeline --session dev-c4d65a9e

TIME      KIND       SERVER/TOOL           DECISION  DETAIL
23:47:22  tool_call  echo/delete_resource  deny      system namespaces are off-limits to agents
dev-c4d65a9e: 1 deny, cost $0.0000 (maqpna dev timeline --last)

3. Verify the hash chain#

Verify a ledger file offline:

maqpna audit verify .maqpna/audit.jsonl

OK: 4 records, hash chain intact

Ask a running gateway to verify its own ledger:

maqpna audit verify --gateway "$MAQPNA_GATEWAY_URL"

OK: http://127.0.0.1:8080: 4 records, hash chain intact (head seq 4, hash 613bb5787165c625f89a025e31fed31a2fbdb88eac9938e230e512ea299e5a38)

With the PostgreSQL state backend, verify the shared chain directly. --postgres takes a file that holds the DSN; --schema (default maqpna) and --chain (default audit) select the chain:

maqpna audit verify --postgres /run/secrets/maqpna-state-dsn

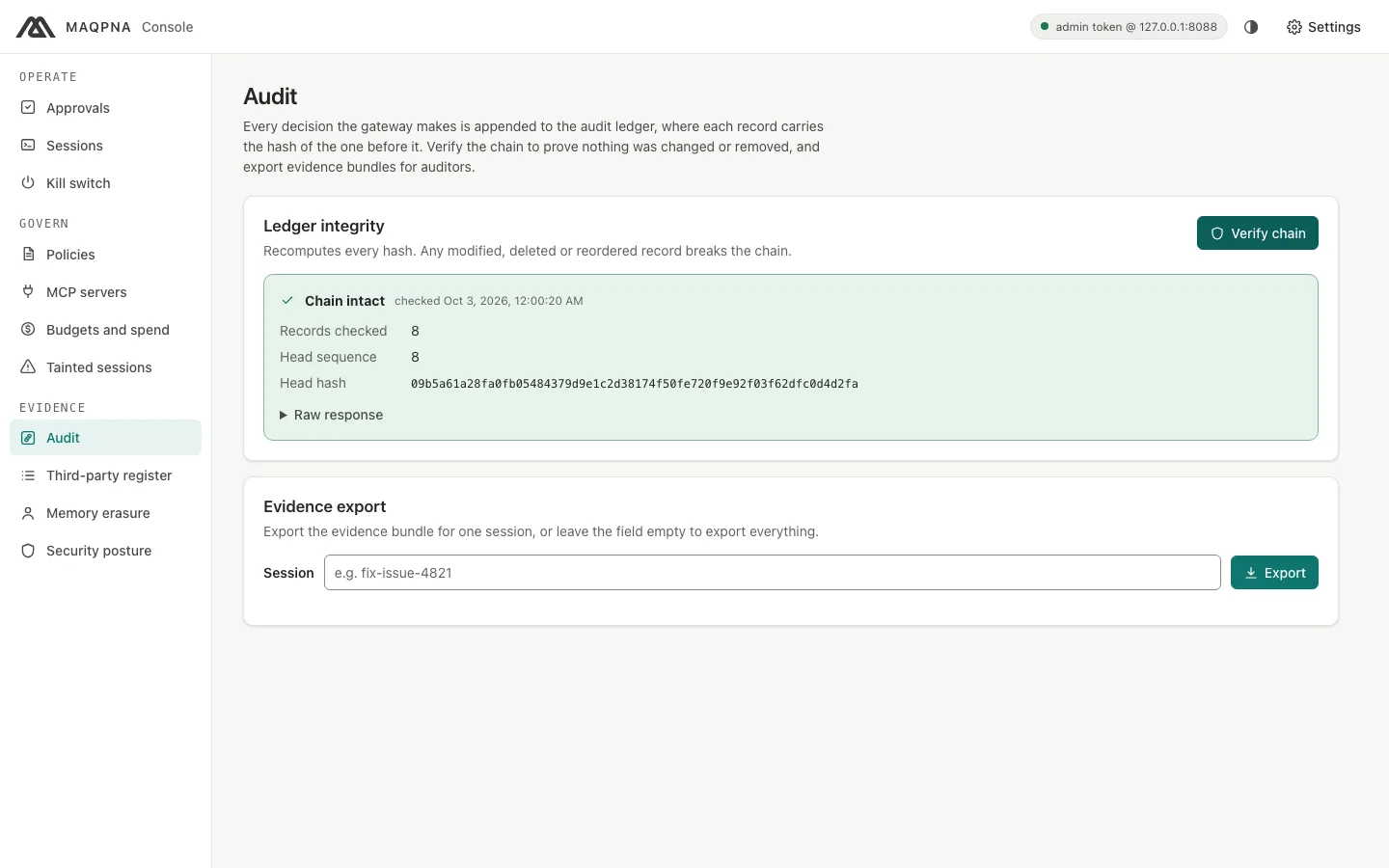

In the console, Audit → Verify chain runs the same check on the gateway's ledger and shows the head sequence and hash:

Light theme.

4. Sign checkpoints with a key you hold#

A hash chain proves that records were not changed after the fact, but whoever holds the file could rewrite the whole chain. Signed checkpoints close that gap: the gateway signs the ledger head with an Ed25519 key, publishes the public key (JWKS) at /v1/audit/jwks, and anyone can check the signatures offline.

Generate a key:

maqpna keygen -out keys --name checkpoint

private key: keys/checkpoint.key
public key:  keys/checkpoint.pub
kid:         9FHvKLplpeVjzWvxxFWPh1ehLcgi_pTY8-7Q7coiPjE

In a cluster, put the key in a Secret with the key audit-signing.pem and enable signing in your Helm values:

audit:
  checkpointSigning:
    enabled: true
    secretName: maqpna-audit-signing
    intervalSeconds: 60   # sign at least every 60 s
    every: 0              # also sign after this many records (0 = gateway default 1000)

The gateway setting behind it is auditCheckpointKey, a key URI: file:///abs/path (PKCS#8 PEM, mode 0600 or 0400), pkcs11:… or kms://<provider>/<key-id>. The release binaries include only the file backend; pkcs11: and kms:// URIs are parsed but need a backend built into your gateway image (see sovereignty and confidential tiers).

Fetch a copy of the ledger with its checkpoints and public keys, then verify it offline:

maqpna audit fetch ledger --out ledger.jsonl
maqpna audit verify ledger.jsonl --jwks ledger.jsonl.jwks.json --checkpoints ledger.jsonl.checkpoints.jws

wrote ledger.jsonl (7 records, head 81dff220de43203a25b8270b39c4ad65bc6a1eafb00e46d521a4a8b87c8328c8)
wrote ledger.jsonl.checkpoints.jws and ledger.jsonl.jwks.json; verify with: maqpna audit verify ledger.jsonl --jwks ledger.jsonl.jwks.json
OK: 7 records, hash chain intact
OK: 2 Ed25519-signed checkpoints verified (last seq 7, kid 9FHvKLplpeVjzWvxxFWPh1ehLcgi_pTY8-7Q7coiPjE, 2026-10-03T03:48:49Z)

maqpna audit fetch jwks --out jwks.json and maqpna audit fetch checkpoints --out FILE fetch the parts separately. Give the auditor the JWKS through a channel you trust, not only next to the ledger.

The chart's older HMAC checkpoints (audit.hmacCheckpoints, key in MAQPNA_AUDIT_HMAC_KEY) are checked by audit verify when that variable is set (--checkpoint-key-env names a different one). HMAC checkpoints need the secret key to verify, so prefer Ed25519 for third parties.

5. Detect tampering#

Change one decision in a copy of the ledger and verify it:

sed 's/"decision":"deny"/"decision":"allow"/' .maqpna/audit.jsonl > tampered.jsonl
maqpna audit verify tampered.jsonl; echo "exit status $?"

TAMPERED: chain breaks at seq 3 after 2 valid records: audit: hash chain broken: seq 3 hash mismatch (content modified)
exit status 3

Removing a record is caught the same way:

TAMPERED: chain breaks at seq 5 after 4 valid records: audit: hash chain broken: seq 6, expected 5

audit verify exits 0 when the chain is intact, 3 when it is broken, and 1 on other errors, so you can run it in CI or a cron job.

6. Export an evidence bundle#

An evidence bundle is a verifiable package of audit records for one session, namespace, agent, user or time range:

# offline, from a ledger file
maqpna audit export .maqpna/audit.jsonl --session dev-c4d65a9e --out evidence.json

# from a running gateway (adds the signed checkpoints and JWKS when configured)
maqpna audit export --gateway "$MAQPNA_GATEWAY_URL" --session dev-c4d65a9e --out evidence.json

The bundle (schema maqpna.io/audit-evidence/v1) has these top-level fields: schema, generatedAt, frameworks, filter, range, recordCount, recordSchemas, ledgerRecordCount, chainHead, verified, decisionsByAction, toolsUsed, approvals, totalCostUsd and records. Exports from a gateway with checkpoint signing also carry signedCheckpoints and checkpointJwks. Filter with --session, --namespace, --agent, --user (gateway only), --since and --until (RFC 3339).

7. Stream records to a SIEM#

The gateway ships ledger records to SIEM sinks (auditSinks) with a durable cursor, at least once. Sink types are syslog (tcp:// or tls://), http and jsonl; formats are json, rfc5424-json, cef and ocsf. In Helm values:

audit:
  sinks:
    - name: siem
      type: syslog
      address: tls://siem.acme.eu:6514
      format: rfc5424-json
      tlsSecret: maqpna-siem-tls        # ca.crt (and tls.crt/tls.key with mtls: true)
    - name: ocsf
      type: http
      url: https://ingest.acme.eu/ocsf
      format: ocsf
      headersSecret: maqpna-siem-headers  # key "headers": "Authorization: Splunk <token>"

Every sink connection goes through the residency-checking dialer. With sovereignty.enabled, sinks must use TLS and match sovereignty.allowedEgressHosts.

Check the sinks:

maqpna audit sinks

Output from a local run with one jsonl sink:

ledger head seq 7
NAME       TYPE   FORMAT  CURSOR  LAG  DELIVERED  ERRORS  LAST ERROR
siem-file  jsonl  json    7       0    7          0

--max-lag N exits 3 when a sink lags by more than N records or reports an error; use it in monitoring. To backfill a sink from a ledger file, run the sink offline with the gateway's config:

maqpna audit stream .maqpna/audit.jsonl --config .maqpna/gateway.json --sink siem-file --from-seq 6

OK: sent 2 records from seq 6 to sink siem-file

8. Keep a write-once copy (WORM)#

The gateway can ship sealed ledger segments to an S3-compatible bucket with Object Lock in COMPLIANCE mode (MinIO, Ceph RGW or S3), so no one can delete or rewrite them during the retention period:

audit:
  sink: worm
  worm:
    endpoint: https://minio.audit.svc:9000   # in-country
    bucket: maqpna-audit                      # created with Object Lock enabled
    region: eu-central-1
    objectLockDays: 365
    credentialsSecret: maqpna-audit-s3        # keys access-key and secret-key

Without WORM or gateway.auditStorage.persistent: true, the ledger lives on an emptyDir and is lost when the pod is rescheduled.

9. Build the third-party register#

For DORA Art. 28, list every MCP server, model route and agent-to-agent (A2A) peer that agents used, built from the ledger:

maqpna evidence register
maqpna evidence register --format csv --since 2026-01-01T00:00:00Z --out register.csv

Output from a local run:

KIND         NAME  HOST       JURISDICTION  RESIDENCY OK  CALLS  DENIED  COST USD  FIRST USE                    LAST USE
mcp-server   echo  127.0.0.1                              6      1       0         2026-10-03T03:47:22.425777Z  2026-10-03T03:48:45.514104Z
model-route  stub  127.0.0.1                              1      0       0         2026-10-03T03:47:22.856093Z  2026-10-03T03:47:22.856093Z

--include-unused also lists configured providers that were never called.

Verify#

• maqpna audit verify FILE prints OK: N records, hash chain intact and exits 0.
• With checkpoint signing, maqpna audit verify FILE --jwks JWKS also prints OK: N Ed25519-signed checkpoints verified.
• maqpna audit sinks --max-lag 100 exits 0.

Troubleshooting#

Next steps#

• Sessions: the timeline of one session.
• Usage metering and billing: reports signed with the same checkpoint key.
• Backup, restore and DR: back up the ledger and its checkpoints.
• Command reference: maqpna audit verify, maqpna audit export, maqpna audit tail, maqpna audit sinks, maqpna evidence register.
